Record breaking strength at SC24
DirectFlow® high- performance client
NFS/SMB/S3 protocol support
VeLO: Velocity Layered Operations
VPODs: Virtualized Protected Object Devices
Strict cache coherency
Filesystem erasure coding
Dynamic Data Acceleration
Distributed sparing
User/group/volume quotas
Non-disruptive capacity expansion
Adaptive Capacity Balancing
Scalability to thousands of certified nodes
Ethernet and InfiniBandTM support
Data reduction
VeLO is a new key-value store used within the platform’s Director layer for handling small files and metadata operations. VeLO supports the diverse range of work- loads found in AI. It is optimized for flash and delivers
up to two million IOPS per instance. VeLO supports an infinitely scalable number of instances in the same global namespace.
VPODs are discrete, virtualized, and protected storage units that form the foundation of data storage in hybrid nodes. Infinitely scalable VPOD instances operate within a unified global namespace, providing high performance and flexible scalability.
PanFS V11 includes data reduction at the Storage node level. This option can be toggled at any time via either the graphical user interface (GUI) or command-line interface (CLI).
All VDURA V5000 nodes are managed as part of the overall PanFS solution. No matter how many V5000 nodes you add, all nodes in the realm are managed from one GUI or CLI.

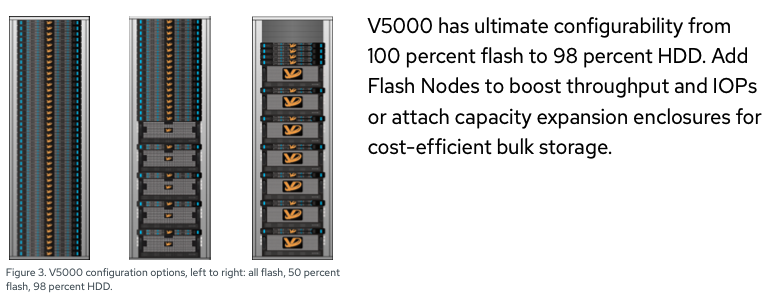

| 42U Rack Configuration Options (not including switches) | |
|---|---|
|
1U Director (x3) |
|
|
VCH-5000-D1N |
For both standard and dual- actuator storage servers |
|
1U Storage Server (x7) |
|
|
VCH-5000-S1N |
Standard drives |
|
VCH-5050-S1N |
Dual-actuator drives |
|
4U JBOD, 78 or 108 Drive (x7) |
|
|
VCH-5000-J108-3456 |
108x 32 TB HDDs |
|
VCH-5000-J108-3240 |
108x 30 TB HDDs |
|
VCH-5000-J108-2592 |
108x 24 TB HDDs |
|
VCH-5000-J108-2592s |
108x 24 TB SED HDDs |
|
VCH-5000-J108-1728 |
108x 16 TB HDDs |
|
VCH-5000-J78-2496 |
78x 32 TB HDDs |
|
VCH-5000-J78-2340 |
78x 30 TB HDDs |
|
VCH-5000-J78-1872 |
78x 24 TB HDDs |
|
VCH-5000-J78-1872s |
78x 24 TB SED HDDs |
|
VCH-5050-J78-1404s |
78x 18 TB SED HDDs, dual-actuator |
|
VCH-5000-J78-1248 |
78x 16 TB HDDs |
The VDURA® Data Platform V5000 is the next-generation hybrid, mixed-workload storage appliance from VDURA. The V5000 is built on industry-standard hardware chosen for its carefully balanced architecture, with emphasis on mixed media storage.
VDURA V5000 Storage nodes are powered by PanFS®, the VDURA parallel file system, and can serve up to hundreds of gigabytes of data per second from a single namespace. Together with V5000 Director nodes and the DirectFlow® driver on client systems, PanFS provides parallel and redundant access to V5000 Storage nodes to deliver the highest performance with unlimited scalability, enterprise-level reliability, and easy management.
VDURA V5000 Director and Storage nodes are server nodes that run the PanFS parallel file system. These nodes have been designed to optimize form factor, drive accessibility, and overall quality and reliability. V5000 nodes have been configured with a balanced architecture focused on mixed-file storage, including CPU strength, DRAM capacity, instant secure erase or optional self-encrypting drives (SEDs), performance, and networking bandwidth.
The VDURA V5000 system has two storage enclosure options — high-density enclosures containing 78 HDDs or ultra-dense enclosures with 108 HDDs. Both are 4U, 19” rackmount encloses that come fully populated with HDDs. The 4U78 storage enclosure is ideal for one-meter deep racks, while the 4U108 fits 1.2-meter deep racks. V5000 storage enclosures support a wide range of HDDs, as detailed in the specification section below. Both enclosure types also include two Titanium-level redundant power supplies.
| V5000 Performance Specifications | |
|---|---|
|
IOPs Performance |
Up to 2M IOPs per Director Up to 6M IOPs for filesystem minimum configuration |
|
Throughput Performance |
Up to 200 GB/s per rack |
|
Capacity |
Up to 26 PBe per rack1 |
|
Data Durability |
5-12 nines, increasing with scale |
|
Data Availability |
3-5 nines, increasing with scale |
|
Ease of Use |
Enterprise-level usability |
1 — Effective capacity after data reduction.
The VDURA V5000 is the industry’s best price-to- performance parallel file system solution. The PanFS scale-out architecture allows the system’s storage capacity, DRAM caching, and network bandwidth all to grow incrementally and linearly as you add more Storage nodes.
The PanFS file system delivers data in parallel from Storage nodes to applications, multiplying the bandwidth an application can achieve to a single file. Data flows directly from storage nodes to the application without any hops through intermediate servers or extra network links.
VDURA V5000 systems have a low cost of acquisition due to their capacity-optimized storage architecture based on commodity hardware. In addition, PanFS reduces operational complexity — only minimal staff are needed to administer and manage the system, with no extensive training required.
| V5000 Technical Specifications | |||||
|---|---|---|---|---|---|
|
|
VCH-5000-D1N |
VCH-5000-S1N VCH-5050-S1N |
VCH-5000-J78-* VCH-5050-J78-*s2 |
VCH-5000-J108-* VCH-5000-J108-*s2 |
|
|
Description |
Director node server |
Storage node server |
78 drive JBOD |
108 drive JBOD |
|
|
Performance (x7) |
Up to 2M IOPS |
N/A |
Up to 26.4 GB/s3 Up to 13.2 GB/s |
Up to 17.8 GB/s |
|
|
Connectivity |
NDR200 or 200/100 GbE ports |
NDR200 or 200/100 GbE ports |
SAS 4 (24 G) to Storage node |
SAS 4 (24 G) to Storage node |
|
|
Enclosure Dimensions (W x D x H without bezel) |
17.5 x 33 x 1.75 in. 45 x 84 x 5 cm |
17.5 x 33 x 1.75 in. 45 x 84 x 5 cm |
17.5 x 33 x 1.75 in. 45 x 84 x 5 cm |
17 x 41 x 7 in.
43 x 104 x 18 cm |
|
|
Rack Units (x7) |
1U |
1U |
4U |
4U |
|
|
Weight with Drives |
41 lbs. 18.6 kg |
38.8 lbs. 17.6 kg |
207.2 lbs. 94.5 kg |
263.2 lbs. 119.4 kg |
|
|
AC Power Input Frequency
Inlet Connector Type |
200–240 V 50–60 Hz C14 |
200–240 V 50–60 Hz C14 |
200–240 V 50–60 Hz C14 |
200–240 V 50–60 Hz C14 |
|
|
Power Consumption (typical/max measured at plug) |
776 W/1201 W |
722 W/1138 W |
839 W/1155 W ———————- 1191 W/1534 W3 |
1081 W/1448 W |
|
|
Thermal Output (typical/max) |
2647 BTU/4097 BTU |
2463 BTU/3882 BTU |
82862 BTU/3940 BTU ——————————- 2832 BTU/5234 BTU3 |
3688 BTU/4940 BTU |
2 — Self-encrypted drives
3 — Dual-actuator HDDs only
